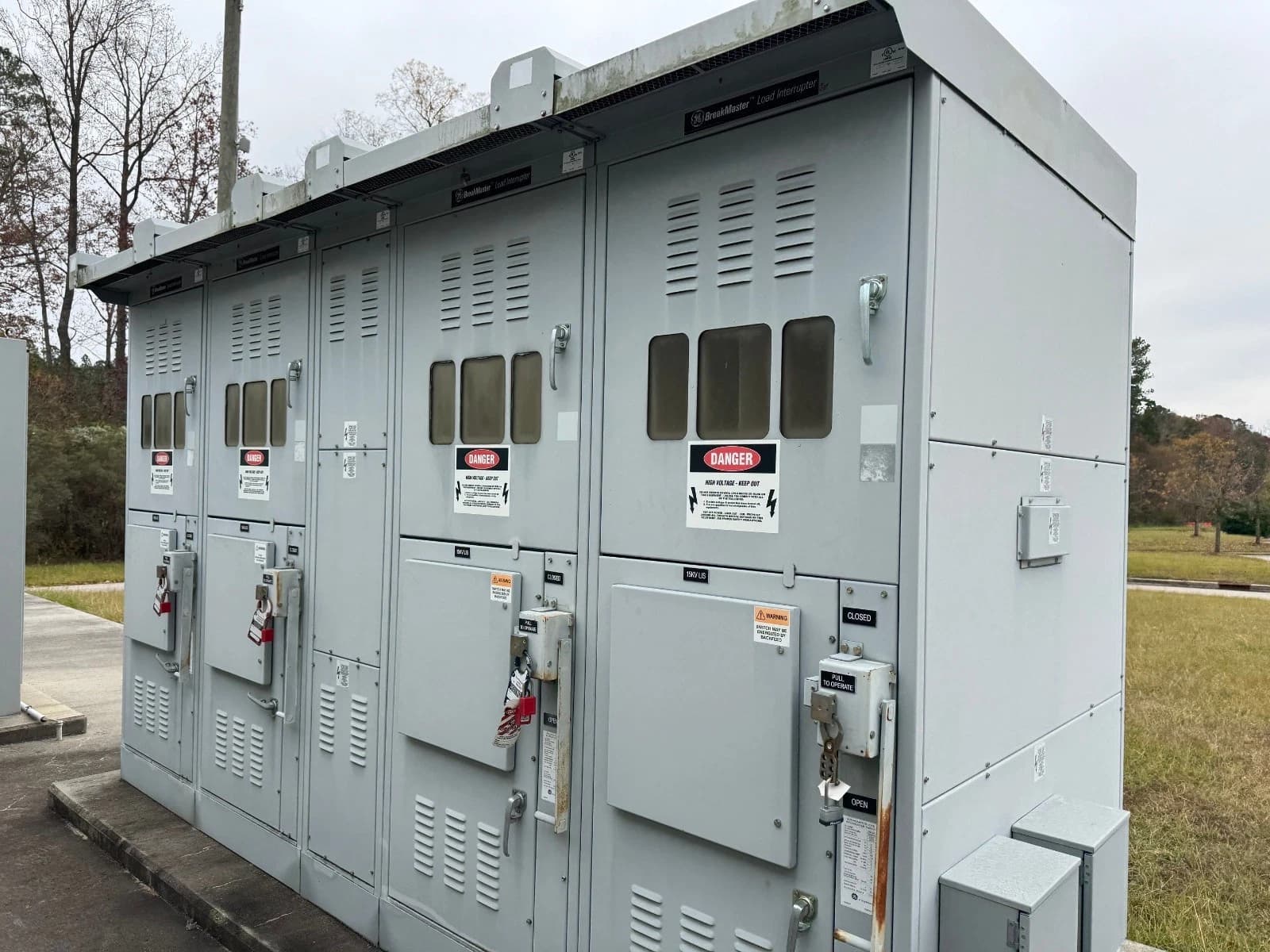

15kV GE 1200 Amp Breakmaster Load Interrupter Switch 1200A 3R Outdoor 2015

One lineup- consisting of two nonfused switches and two fused switches GE Breakmaster Load Interrupter Switch REQ. NUMBER: S109114670 FACTORY ORDER NUMBER: 150099632-10 SWITCH SERIAL NO.: 87854-6 MANUFACTURE DATE: 04/23/15 Electrical Ratings Rated Maximum Voltage: 15 kV Impulse Withstand (BIL): 95 kV Norm. Freq. Withstand Voltage: 36 kV Frequency: 60 Hz Continuous Current: 1200 A Load Interrupting Current: 1200 A Momentary Current: * kA SYM: 61 * kA ASYM: 38 Short Time Current: * Time: 2 SEC * kA SYM: 61 Fault Closing Current: 61 kA ASYM Fuse Information Fuse Rating: 540 Fuse Catalog No.: (2) 15RBA4300E Integrated Switch and Fuse Short Circuit Current: 47 kA ASYM Bus Ratings Main Bus Ampacity: 1200 A Main Bus Bracing: 61 kA ASYM Enclosure Type Enclosure Category: B Environment: OUTDOOR GE Breakmaster Load Interrupter Switch REQ. NUMBER: S109114670 FACTORY ORDER NUMBER: 150099632-10 SWITCH SERIAL NO.: 87854-8 MANUFACTURE DATE: 04/23/15 ------------------------------- Electrical Ratings Rated Maximum Voltage: 15 kV Impulse Withstand (BIL): 95 kV Norm. Freq. Withstand Voltage: 36 kV Frequency: 60 Hz Continuous Current: 1200 A Load Interrupting Current: 1200 A Momentary Current: * kA SYM: 61 * kA ASYM: 38 Short Time Current: * Time: 2 SEC * kA SYM: 61 Fault Closing Current: 61 kA ASYM ------------------------------- Fuse Information Fuse Rating: N/A Fuse Catalog No.: N/A Integrated Switch and Fuse Short Circuit Current: 61 kA ASYM ------------------------------- Bus Ratings Main Bus Ampacity: N/A Main Bus Bracing: N/A ------------------------------- Enclosure Type Enclosure Category: B Environment: OUTDOOR
