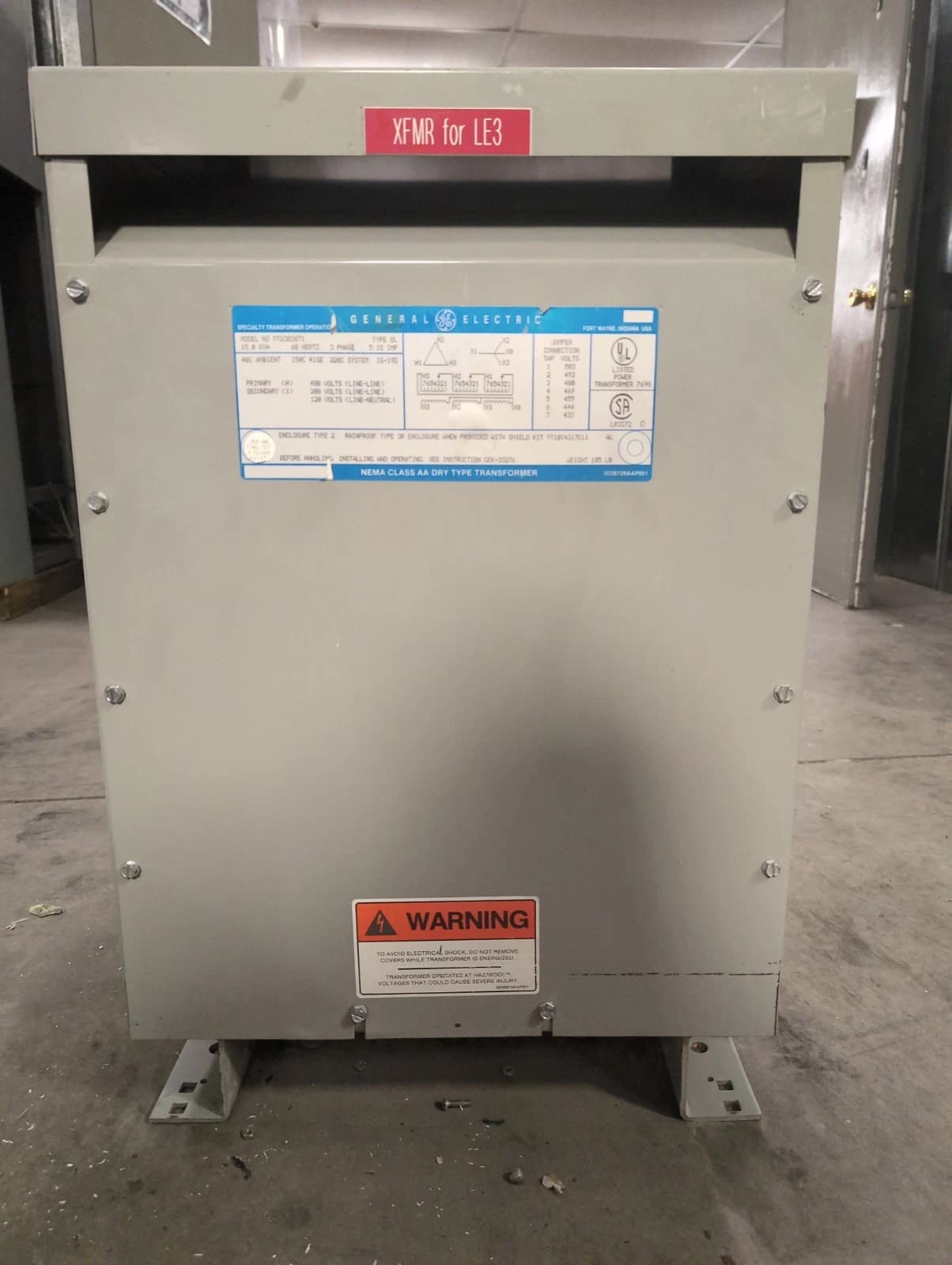

GE 9T23B3871 Dry Type Transformers — image 1 of 6
Swipe

15KVA GE 9T23B3871 Transformer Pri 480V Sec 208/120V 3PH 60Hz Type 2 Encl Indoor

$550.00

Specifications

Part Number
9T23B3871
Application
Industrial
Manufacturer
GE
Condition
Used
Cooling
Air
Enclosure
Indoor
Enclosure Type
Indoor
Frequency
60 Hz
Insulation Class
H
KVA Rating
15 kVA
MPN
9T23B3871
Maximum Operating Frequency
60 Hz
Model
9T23B3871
Mounting Style
Stand Alone
Number in Pack
1
Number of Phases
3
Poles
3
Power Rating
15 kVA
Primary Current Rating
90 A
Primary Impedance
120 Ω
Primary Voltage
480 V
Primary Voltage Rating (AC)
480 V
Primary Voltage Rating (DC)
15 V
Secondary Voltage
208/120 V
Secondary Voltage Rating (DC)
15 V
Serial Number
T312
Suitable For
Interior
Transformer Kva
15
Transformer Voltage High
480 Volt
Transformer Voltage Low
208/120 Volt
Turns Ratio
1:5
Type
Dry Type Transformer
In Stock1 Used unit available

Description

15KVA GE 9T23B3871 Transformer Pri 480V Sec 208/120V 3PH Type 2 Encl Indoor 60Hz Weight and Dimensions: 185lb 19W x 16L x 27H Location: Anthony A06-B05 T312

SKU: GE-9T23B3871-T312-U

Weight: 999 lbs
