Eaton CHMDL3800F 800A 3P 600V 100% Rated Breaker w/ MES3800LSIG Trip Unit
$3,500.00
Specifications
- Part Number
- CHMDL3800F
- Amperage
- 800 Amp
- Manufacturer
- Eaton
- Condition
- Used
- Maximum Amperage
- 800 A
- Phases
- 3
- Poles
- 3
- Voltage
- 600 Volt
In Stock3 Used units available
1
Description

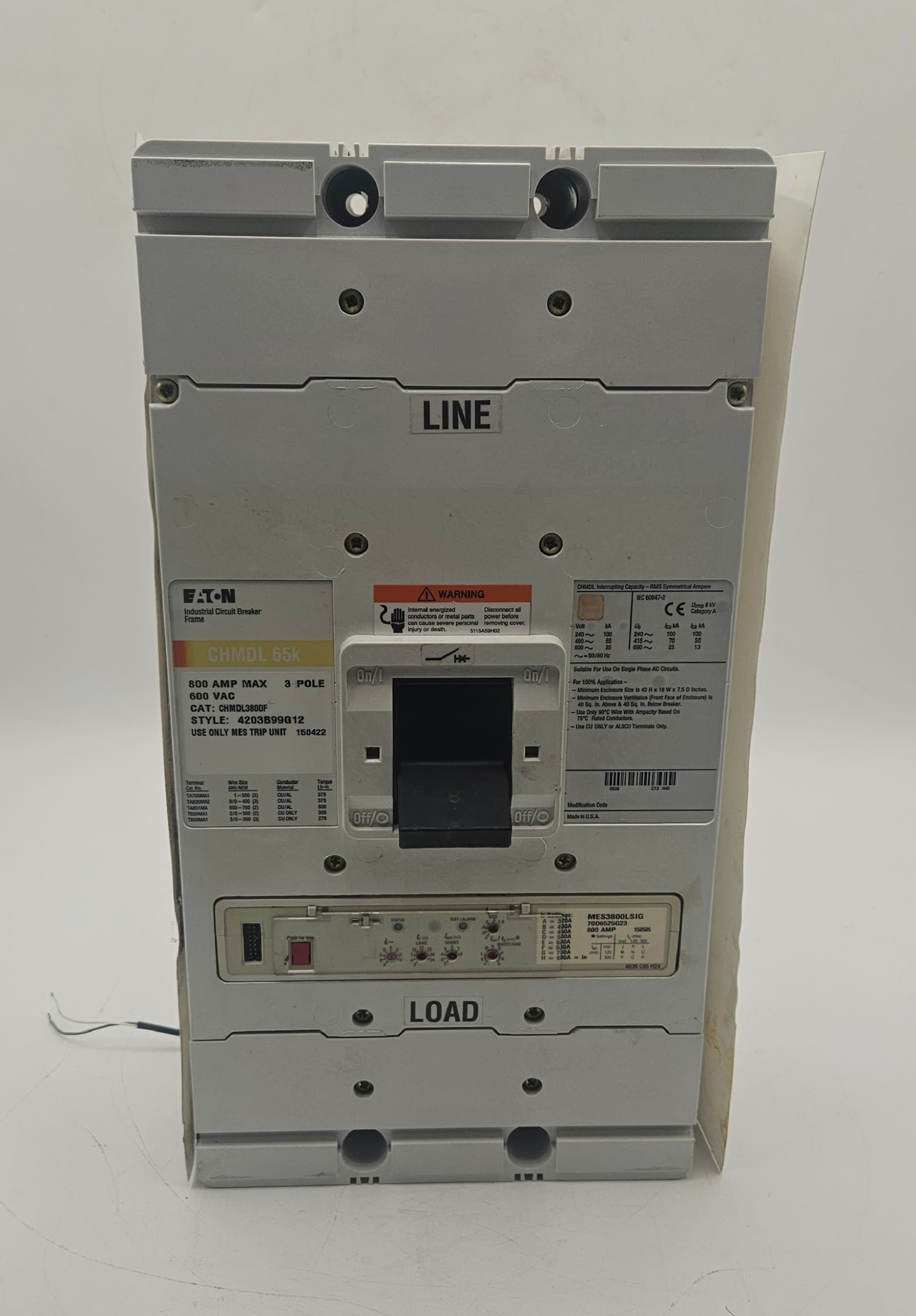

Eaton Cutler-Hammer CHMDL3800F 800A 3P w/ MES3800LSIG Trip Unit
RATING PLUG IS NOT INCLUDED: The black 14-pin port on the left of the trip unit is empty. You will need to install a compatible Eaton Rating Plug (e.g., 800A, Cat# 8RES800T) for this breaker to be functional.
Amperage: 800 Amp Frame
Voltage: 600 VAC
Poles: 3-Pole
Functions: Long-time, Short-time, Instantaneous, and Ground Fault (LSIG)
SKU: CHMDL3800F-U
Weight: 20 lbs
