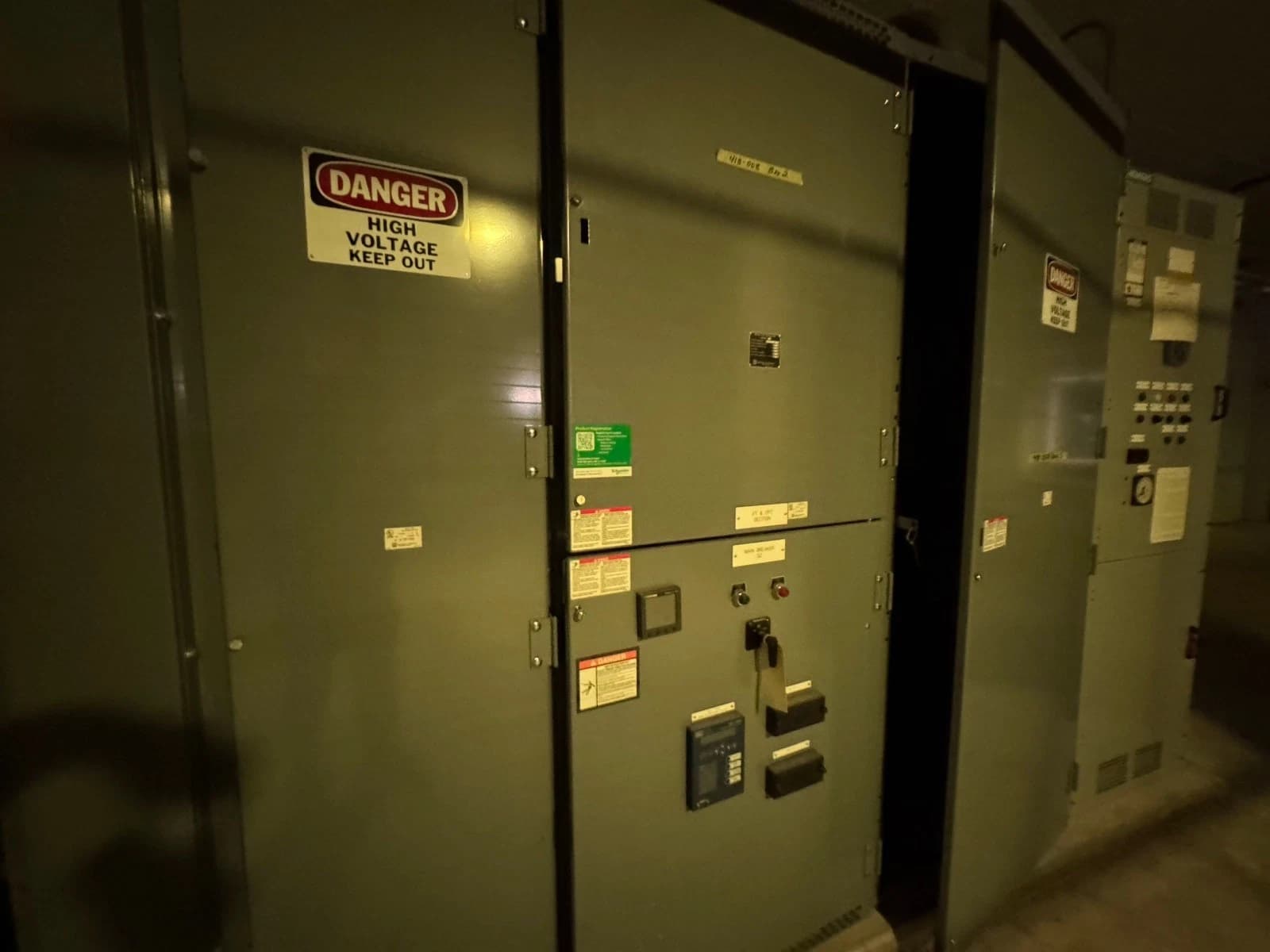

Square D VR V5D3153Y000 1200A 4.76 kV Medium Voltage Switchgear 1200 Amp
$35,000.00
Specifications
- Part Number
- V5D3153Y000
- Amperage
- 1200 Amp
- Manufacturer
- Square D
- Condition
- Used
- Voltage
- 4760 Volt
Out of Stock
Description
Manufacturer: Square D Company
Model / Type: VR
Catalog No.: V5D3153Y000
Factory Order No.: 17-35817418-008
Year Installed: 2015 (physically installed but never wired or energized)
Location: Durham, NC
Condition: Excellent - effectively unused
Will come with a test report
-------------------------------
Configuration (Per Lineup)
Each lineup includes:
*
Incoming Section
*
Breaker Cell with VR Breaker
*
PT/CPT Section
*
Transformer Connection Section
-------------------------------
Breaker Electrical Ratings
*
Rated Maximum Voltage: 4.76 kV
*
Voltage Range Factor (K): 1.00
*
Impulse Withstand (BIL): 60 kV
*
Frequency: 50/60 Hz
*
Continuous Current: 1200 A
*
Short-Circuit Current: 40 kA SYM
*
MVA Class Reference: 250 MVA
*
Interrupting Time: 3 cycles
-------------------------------
Control Power (Coils)
*
Closing Coil Voltage Range: 104-125 VAC
*
Closing Coil Current: 6.8 A
*
Tripping Coil Voltage Range: 70-140 VDC
*
Tripping Coil Current: 0.9 A
-------------------------------
Additional Data
*
Breaker Weight: 380 lbs
*
Instruction Book No.: 6055-S1
-------------------------------
Notes
Five total lineups available.
Equipment was installed in 2015 but never wired up or placed in service. Clean, dry, controlled environment.
SKU: V5D3153Y000-NS
Weight: 999 lbs
